特點:本系列機型是專為縫制大型厚重物品研發的厚料機型。產品分為雙針、單針左縫合（L）、單針右縫合（N）三款。長臂立柱式，綜合送料，大型立式擺梭，大功率私服電動驅動。送料強勁穩健，線跡平整美觀，操作空間寬敞，多層厚重物料也能輕松縫紉。配置氣動式抬壓腳裝置，壓腳行程大，氣動倒縫裝置，操作便捷輕松，高性能私服控制系統能方便地選擇和設置多種縫紉模式。特別適用于縫制沙發家私、帳篷、風帆、傘具、汽車罩、防護罩、偽裝網及類似大型厚重物品。厚重物品。
Characteristics:This series is a kind of sewing machine for thick materials,which is designed for large-scale and extra-thick objects especially.The products are divided into three of sewing machines including double-needle,single-needle left-side stitching bed (L)and single-needle right-side stitching bed (N).The sewing machine,driven by large power servomotor,adopts long-arm post-bed type and comprehensive feeding with large vertical shuttle hook.it possesses the following advantages:stable and strong feeding,smooth and nice stitch,wide operating space and easy sewing for multilayer extra-thick materials.it is also equipped with pneumatic presser lifting device with large presser stroke and pneumatic back stitch equipment with convenient and easy operation.At the same time,high-performance servo control system can select and set various sewing modes convently.This kind of sewing machine is especially applicable for large-scale and extra-thick machine such as tent,sails,umbrella,covers for automobile,protective cover,camouflage net and so on.
主要技術參數Main Parameters:
型號 Model |
GA204-370-1L |
縫速高達 Max.Sewing speed |
400 s.p.m |
線跡長度 Stitch length |
0-12毫米 mm |
針桿行程 Needle bar stroke |
56毫米 mm |
挑線桿行程 Thread take-up lever stroke |
96毫米 mm |
壓腳提升 Presser food lift |
氣動22mm Pneumatic 22mm |
機針 Needle size |
DD×3 27# |
針間距 Needle gauge |
7.94-18mm |

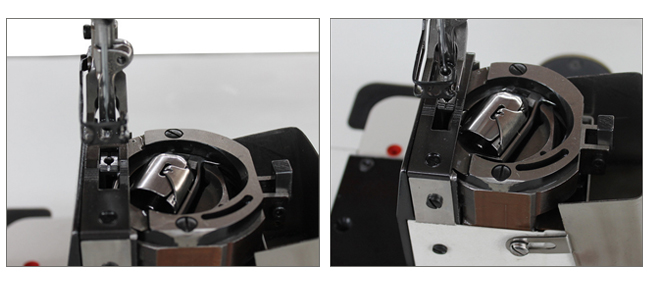

擺梭 Rotating hook |
KRP-204N |
縫臺高度 Height of sewing bed |
140mm |
潤滑方式 Lubrication |
手工潤滑 Manual |
操作空間 Working place |
320×340mm |
